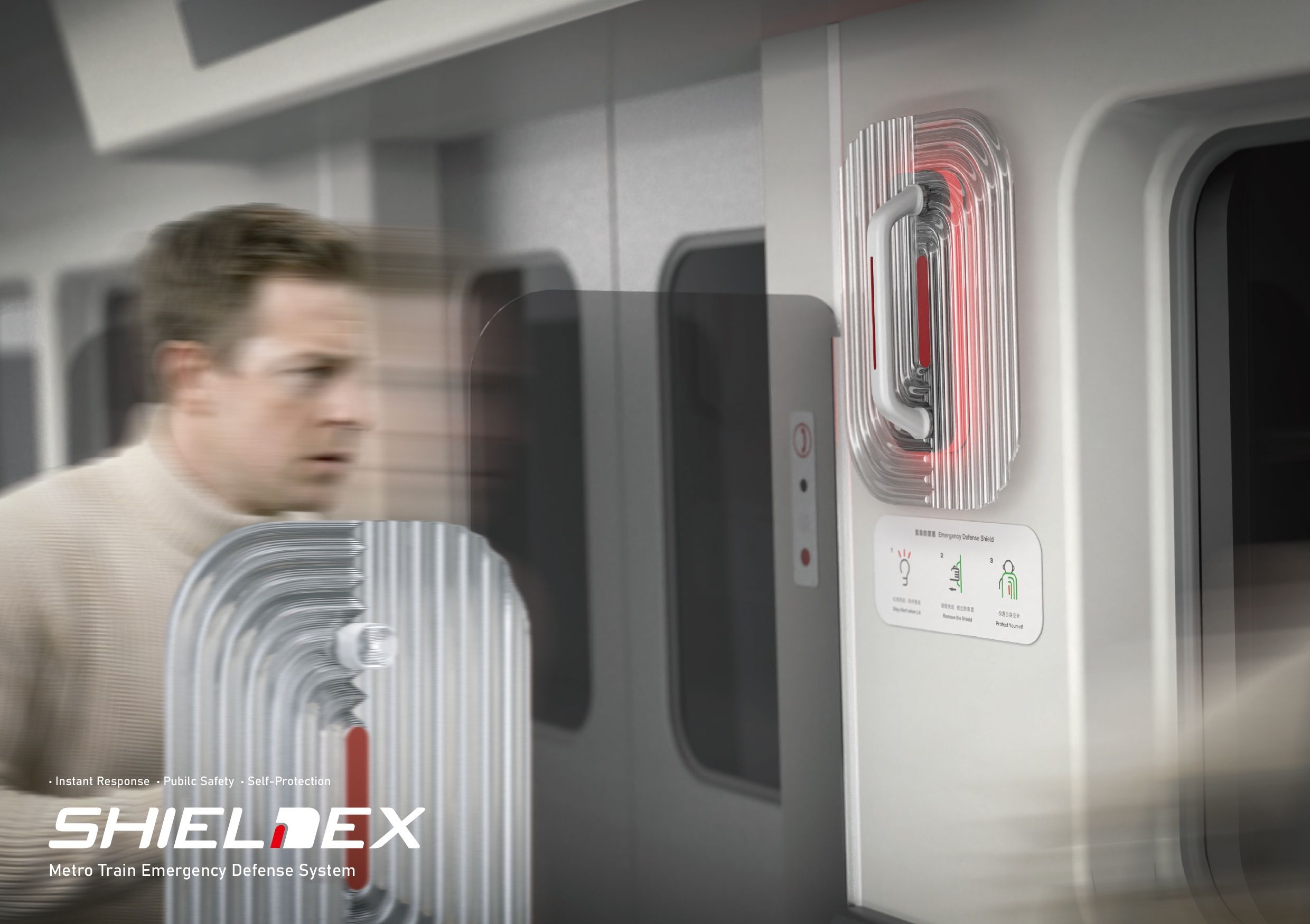

SHIELDEX Metro Train Emergency Defense System

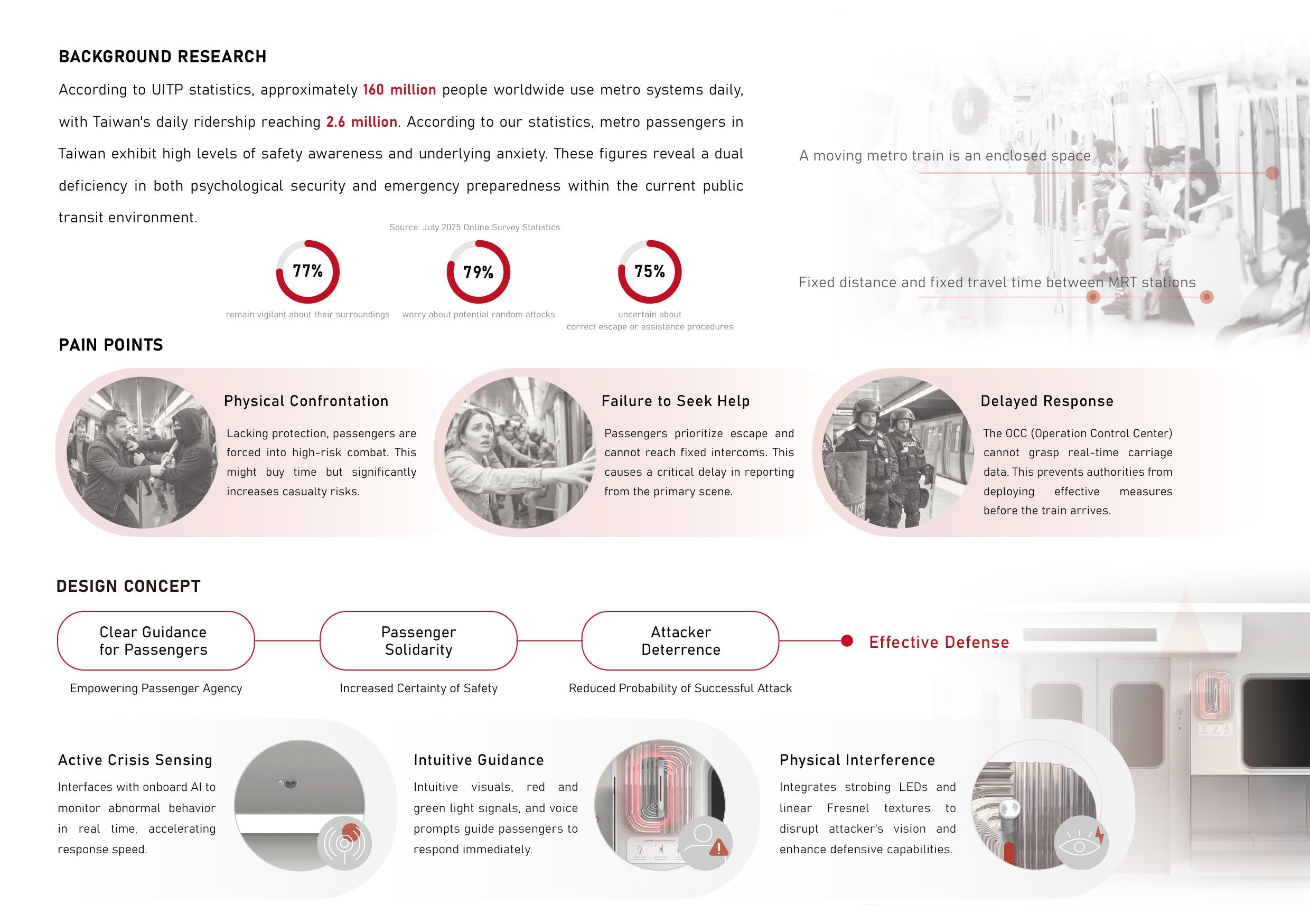

SHIELDEX is an integrated defense shield system for metro carriages, providing immediate protection and active guidance during sudden violent incidents to reduce panic from information asymmetry.

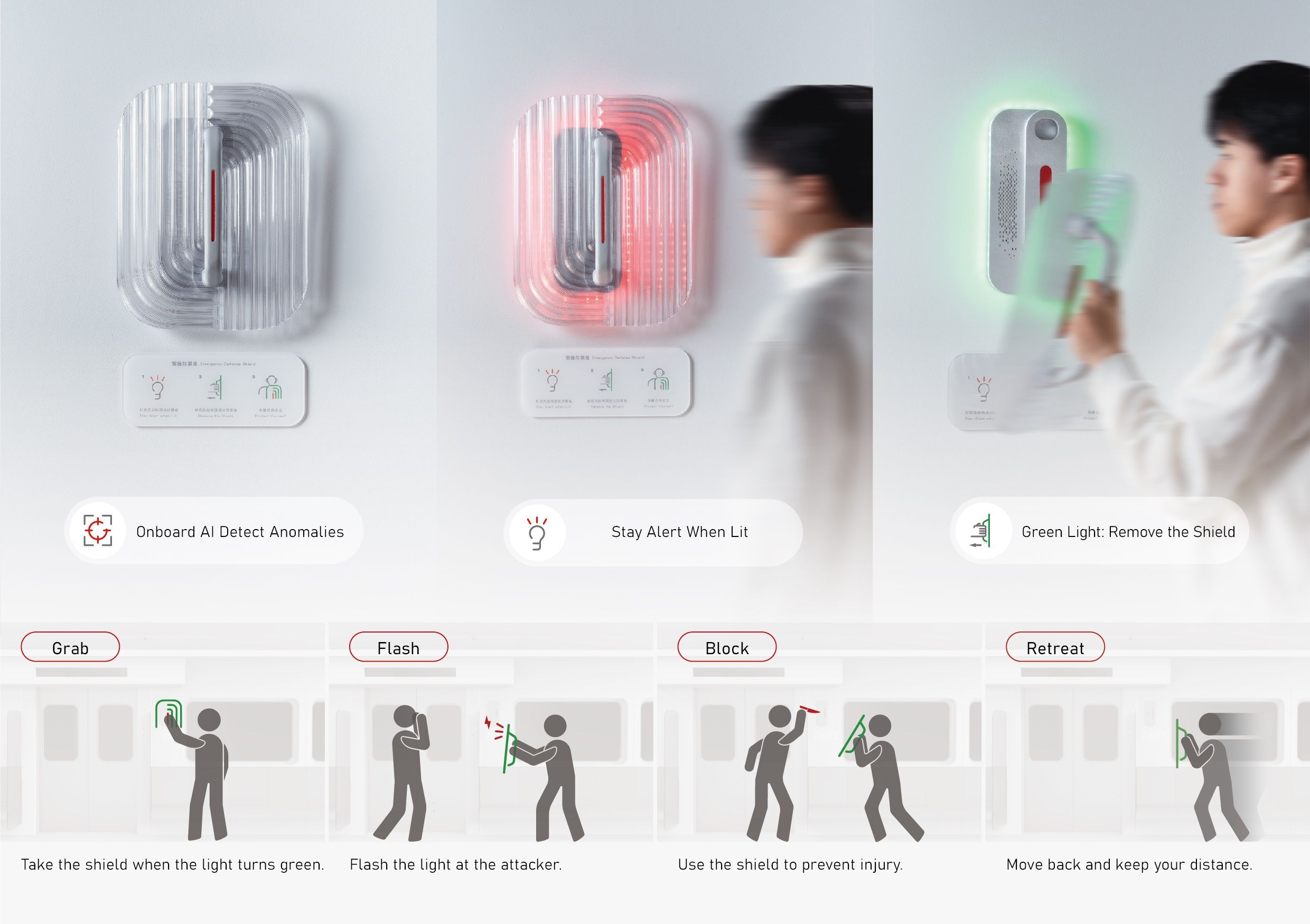

Comprising a shield and a wall-mounted base,the system integrates onboard surveillance to detect conflicts in real time. Upon threat detection, a red alert warns passengers and notifies the driver. Once verified via remote monitoring, the driver remotely unlocks the wall-mounted base, using green lights and audio prompts to guide passenger deployment.

Optimized through stress analysis, the high-impact polycarbonate wave structure achieves a lightweight profile of just 700 grams while maintaining maximum strength. It integrates strobing LEDs and a linear Fresnel lens texture to generate visual disruption, deterring attackers and securing critical reaction time. Embodying a modular approach, the handle is fastened to the shield body via screws for localized replacement, reducing maintenance co
